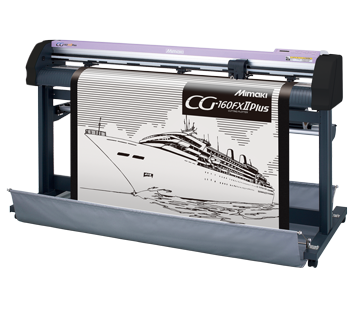

CG-FXIIplus

New world standard of multi-cutting plotter

The CG-FXII Plus introduces its new ID Cut function to vastly improve work efficiency. In collaboration with the JV300-160 Plus, continuous cutting operations can be performed automatically for small-quantity and multi-product orders of stickers and labels. It enables an entire operation to be completed in a single specification of data so that operators can proceed with other jobs simultaneously.

New ID Cut function
Crop mark detection
High precision cutting
  • New Id Cut for continuous unmanned operation
  • 3 different models available (760 mm, 1300 mm & 1600 mm)
  • Wider roll cutting format for professional use
  • High precision cutting and performance
  • Mark sensor, with media hold function to guarantee accuracy
  • Maximum cutting speed of 100cm/s
  • Half-cut function holds image in place after cutting for perfect stickers & decals
  • Optional media baskets available
  • Professional & user-friendly software package included as standard

Create…

Clothing, logos, stickers, labels, decals, graphics and signage

Substrates

(Coloured) vinyl, transparent PET, (transfer) paper, flock, rubber.

Specifications of CG-FXIIplus

ItemCG-75FXII PlusCG-130FXII PlusCG-160FXII Plus
Acceptable sheet sizeWidth90 – 1,040mm (3.54 – 40.9”) 90 – 1,580mm (3.54 – 62.0”) 90 – 1,880mm (3.54 – 74.0”)
Roll weight18kg (39.7lb) or less 22kg (48.5lb) or less
Roll dia200mm (7.87”) or less
Effective cutting area1760mm x 51m (29.9” x 167’)1,300mm x 51m (51.2” x 167’)1,600mm x 51m (63.0” x 167’)
Max. auto cutting area2870mm (34.3”)1,425mm (56.1”)1,720mm (67.7”)
Max. cutting speed100cm/s
Max. moving speed140cm/s (In a 45° direction and in a pen-up state)
Adjustable speed range

(cutting /plotting)3

1 ‒ 10 cm/s (1 cm/s step), 10 – 50 cm/s (5 cm/s step)

50 – 100 cm/s (10 cm/s step)

Mechanical resolution5 μm (0.0002”)
Command resolution25 μm, 10 μm (MGL-IIc), 100 μm, 50 μm (MGL-Ic1)
Repeatability±0.2mm (0.0079”)
Excluding shrinkage/expansion caused by the film temperature
Accuracy assurance range760mm × 10m (29.9” x 0.39”)1,300mm × 10m (51.2” x 0.39”)1,600mm × 10m (63.0” x 0.39”)
Depending on the specified film and cutting conditions
Max. pressure500g
Pressure settingCutter10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 500 g (10 g step)
Pin10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 500 g (10 g step)
Pen10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 150 g (10 g step)
Acceptable cutting sheet4sVinyl up to 0.25mm (0.01”) thickness, Fluorescent sheet, Reflective sheet
Acceptable sheet for pouncing5Paper thickness 0.06 – 0.13 mm (0.0024″ – 0.005″)
Applicable tools6Cutter, Water based ball-point pen, Oil based ball-point
Type of commandMGL-IIc/Ic1
InterfaceRS-232C/USB
Receiver buffer size30Mb standard (20Mb when in sorting)
Operation environmentTemperature : 5 – 35 degrees Humidity : 35 – 75% (Rh) Non-condensationAC100V – 240V 1A 50/60Hz
PowerAC100V – 240V 1A 50/60Hz
Power consumption100W or less
Dimensions (W×D×H)1,285 x 700 x 1,217mm

(50.5” x 27.5” x 47.9”)

1,825 x 700 x 1,217mm

(71.8” x 27.5” x 47.9”)

2,128 x 700 x 1,217mm

(83.6” x 27.5” x 47.9”)

Weight47kg (104lb)62kg (137lb)70kg (154lb)

*1: Maximum sheet feeding length differs depending on the software.
*2: Sheet width to cut off from the roll.
*3: Restricted sheet width.
*4: Provided that the blade specific to fluorescent type vinyl (SPB-0007) and the blade specific to reflective sheet (SPB-0006) are used.
*5: Pouncing tool intended specifically for pouncing shall be used.
*6: The goods on the market are φ8~φ9 mm pen. Accuracy and image quality are not guaranteed.

Features of CG-FXIIplus

The CG-FXII Plus introduces its new ID Cut function to vastly improve work efficiency. In collaboration with the JV300-160 Plus, continuous cutting operations can be performed automatically for small-quantity and multi-product orders of stickers and labels. It enables an entire operation to be completed in a single specification of data so that operators can proceed with other jobs simultaneously.

New ID Cut Function


ID Cut for continuous and automated cutting operation

  • A new “ID Cut function” has been adopted, enabling continuous cutting operation to be performed automatically
  • The “ID Cut function” automatically scans printed-out register marks with ID, then reads and cuts the cut data. While operators scanned register marks and specified cut data for each cutting job in the past, implementation of the new “ID Cut” function now makes possible the ability to perform unmanned and continuous cutting operations, with operators free to proceed with another operation simultaneously while the machine is performing the cutting operation.

CG-FXIIplus ID Cut










Use ID Cut in combination with JV300Plus

  • JV300 Plus is capable of using ID Cut by means of the CG-FXII Plus after printing out data provided with ID

CG-FXIIplus combo






Key features

High speed continuous crop mark detection using optical sensor

  • An optical sensor enables the automatic consecutive detection of crop marks throughout the nested image which the Inkjet printer prints, in combination with the automatic adjustment function to obtain precise contour cutting

CG-FXIIPlus_Crop Mark






FineCut9

  • Crop mark position data, which are received by command from standard attached plugin software “FineCut”, enables quick movement between crop marks, enabling stress-reduced cutting

CG-FXIIPlus_CropMark






By continuously detecting a maximum of 4 points, nested images in both X axis and Y axis can be cut, aligning each image automatically.


Accurate media feeding ensures precise contour cutting over longer-length prints

  • Necessary media length is fed in advance to reduce tension during cutting. This function increases the precision of long-length print media cutting



“HALF CUT” mechanism, a proprietary technology of Mimaki

  • With the original half cut function, the backing sheet can be cut leaving a little bit of half cut connecting points,which can be easily detached when necessary.Various media without backing sheets can be also cut.

CG-FXIIPlus_Half Cut






Engineered Head Unit

  • The media is automatically cut with standard sheet cutters

CG-FXIIPlus_Engineered Head Unit








Other features

  • Selectable clamp pressure with high and low settings ensure accurate cutting of various media
  • Selectable three jog speeds ensure proper and easy positioning of the head to the point
  • Over-cut function makes the starting and ending points overlapped, which eliminates the uncut portion of the media
  • Media can be loaded from the back or front
  • Up to 6-roll media can be set at a time (1 set standard)
  • Plug-in cutting software for CorelDRAW and Illustrator is included
  • A special adaptor to use commercially available pens and a USB interface are included
