Leading the Future of Sign Graphics through UV Innovation

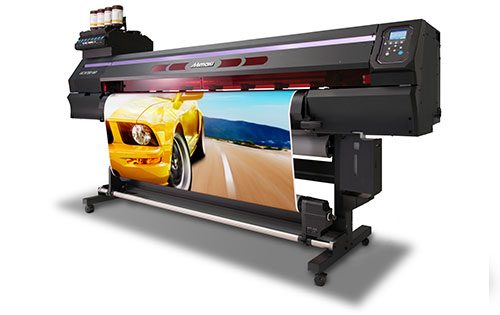

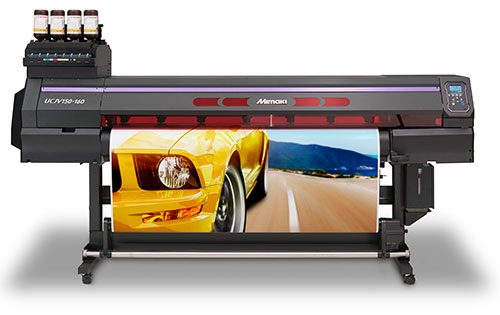

The UCJV Series is a versatile inkjet printer family, having a combined function of both printing and cutting mounted with UV-curable ink.

The UCJV150-160 is an excellent model focused to UV-LED printing technology and Print & Cut function with high cost-performance. It can quickly meet various demands of customers.

All-round UV printer/cutter
Instantly dry ink
Wide range of media
  • Print speeds up to 13.4m2/h
  • Maximum resolution of 1200dpi
  • On-demand print utilizing UV characteristics: Quick access to next processing and sign applying due to UV ink property and wide range of applications
  • Newly developed environmentally friendly UV ink, LUS-170, and flexible UV ink, LUS-200, with stretch ability up to 200%
  • Productive cutting functions. A new function, [ID Cut] will highly improve the work efficiency
  • Upgraded RIP software; RasterLink6Plus


Outdoor Signage, Posters, Banners & flags, Swing P.O.P. (PET film), Labels, Wallpaper

Specifications of UCJV150-160


Printhead1 drop-on-demand piezoelectric head
Print resolution300dpi, 600dpi, 900dpi, 1200dpi
Drop sizeMin: 7pl, Max: 28pl
Head heightManual adjustment (2.0/2.5/3.0mm from platen)
Ink typeLED-UV ink LUS170
Ink colour4C (CMYK)
Ink supply1L bottle supply
Max printing width1,610mm
Max media width1,620mm
Min media width210mm
Media thickness1.0mm or less
Outside diameter250mm or less
Roll weight40kg or less
Outside dimensions (W x D x H)2,900 x 776 x 1,475mm
Power supply2x Single phase (AC100~120/200~240V +/-10%, 50/60Hz +/-1Hz)
Power consumptionAC100V: 1.44kW / AC200V:1.92kW
Operational environmentTemperature: 20~30oC, Humidity: 35~65%Rh, Guaranteed temperature: 20~25oC,
Temperature inclination: +/-10oC/h or less, Dust: 0.15mg/m3 (equivalent to office)
