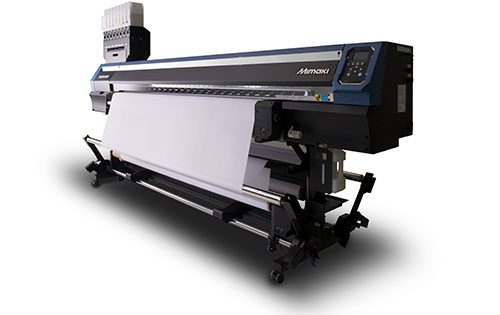

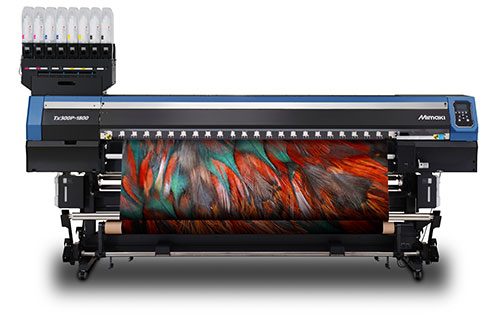

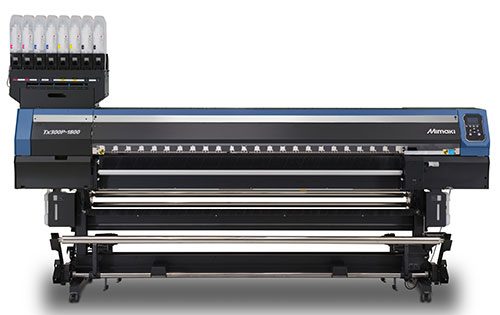

TX300P-1800

A high quality, versatile, direct-to-textile inkjet printer

Mimaki’s undisputed expertise in the digital textile sector is reflected in the innovative new Tx300P-1800 with its capability to print direct onto almost any type of natural or man-made fabric. Effortlessly combining quality and high speed, Tx300P-1800 is ideally suited to applications such as fashion, furnishing, soft signage and exhibitions.

Unique dual ink capability
Multiple ink options
Continuous unattended printing
  • Maximum print speed of 68m2/h
  • Sublimation, disperse, reactive & acid dye and textile pigment inks*
  • Advanced Textile Feeding Mechanism for optimum fabric tension
  • Mimaki MBIS3 Bulk Ink System and large volume ink packs
  • Latest Mimaki MAPS Advanced Pass System
  • Nozzle Check Unit (NCU) ensures reliable continuous print operation
  • High head gap setting for thick and woven textiles

*Sublimation Dye inks available at launch

Create…

Fashion and Apparel, Scarves and Silk Ties, Bags, Home Furnishing and UpholsteryFfabrics, Flags and Soft Signage, Textile Retail, PoS, Exhibition Graphics and much more…

Specifications, options and supplies of Tx300P-1800


Specifications

ItemTx300P-1800
PrintheadOn-demand piezo head (4 in-line printheads)
Print resolution360dpi, 540dpi, 720dpi, 1,080dpi, 1,440dpi
Maximum print width1,920mm
Maximum media width1,920mm
InkType/ColourSublimation dye ink: Sb420 (Bl, M, Y, K, Lbl, Lm)
Disperse dye ink: Dd400 (C, M, Y, K, R, Grey, Violet, Pink)*
Textile pigment ink: TP400 (C, M, Y, K, Bl, R, Lk, Green)*
Reactive dye ink: RC400 (C, M, Y, K, Bl, R, Or, Lk)*
Acid dye ink: AC400 (C, M, Y, K, Bl, R, Or, Lk)*
Package size2L Ink pack
Media thickness1.0mm or less
Rolled media weight40kg (88 lb) or less
CertificationVCCI class A, FCC class A, ETL UL 60950-1
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM
InterfaceUSB 2.0 Hi-speed / Ethernet 1000BASE-T
Power supplySingle-phase (AC100 – 120V / AC200 – 240V)
Power consumptionAC100V : 1.44kW / AC200V : 1.92kW
Operational environmentTemperature: 20 – 30 °C (68 – 86 F°) Humidity: 35 – 65% Rh (Non condensing)
Dimensions(WxDxH)3,200 x 965 x 1,857mm
Weight255kg



Options and Supplies

ItemProduct No.Remarks
Sublimation
Dyeink
Sb420
BlueTBA2,000 ml Ink pack
Magenta
Yellow
Black
Light blue
Light magenta
Disperse dye ink: Dd400*CyanTBA2,000 ml Ink pack
Magenta
Yellow
Black
Red
Grey
Violet
Pink
Textile pigment ink: TP400*CyanTBA2,000 ml Ink pack
Magenta
Yellow
Black
Blue
Red
Light black
Green
Reactive dye ink: RC400*CyanTBA2,000 ml Ink pack
Magenta
Yellow
Black
Blue
Red
Orange
Light black
Acid dye ink: AC400*CyanTBA2,000 ml Ink pack
Magenta
Yellow
Black
Blue
Red
Orange
Light black
Washing
Liquid cartridge
SPC-0259Washing liquid for head cleaning.
220ml cartridge
Washing
Liquid cartridge
SPC-0188SWashing liquid for ink replacement.
220ml cartridge




Our Sb420 ink is ECO PASSPORT by OEKO-TEX® certified.



Features of Tx300P-1800

MAPSMAPS advanced pass system

MAPS is Mimaki’s unique anti-banding feature. To prevent banding, swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.




Continious uninterrupted printing features

Nozzle Recovery Function
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.

Uninterrupted Ink Supply System (UISS)
Two ink bottles per colour can be set with the UISS function. When an ink bottle runs out, another bottle of the same colour automatically starts supplying ink.

Continuous Uninterrupted Printing Features


High head gap settings for thicker textiles

FIG 1
While printing on raised fibre surface textiles, a high head gap setting is required to prevent contact between the printhead and any raised fibres. (FIG.1)

On more conventional models, restricted head gap reduces the accuracy of ink droplet placement. The new Tx300P-1800 employs a new advanced printhead with a high head gap to ensure accurate ink droplet placement, thereby enabling high-quality printing on a wide variety of fabric types.




High performance TXLINK3 Lite RIP software

Easy to create different colour data1. Colour replacement:
Desired colours can be represented by specifying the ink volume of each ink colour.

  • Create desired colours: when the printed colour differs from that expected, the colour replacement function enables a user to specify the desired printing colour as the target colour. This function is useful for reproducing corporate colours.
  • Easy to create different colour data: with TxLink3 Lite, colours are easily replaced on vector and raster data.

2. Step and repeat:
Large seamless patterns can be produced from a single image, including repeat and mirror patterns.

3. Multicolour ICC profile creation:
ICC profiles can be created simply to match a target colour by following the wizard.

COLOUR PROFILE CREATION PROCEDURES:

  1. Specify the ink colour for each ink slot.
  2. Set the total ink limit.
    Print the ink limit chart, then set the maximum ink volume.
  3. Measure the ink density error (adjustment of ink density gradation).
    Each ink density is measured. Density is automatically calculated and adjusted.
  4. ICC profile creation.
    Measurement of the configuration chart printed from Colour GPS, The profile is automatically created.

Advanced textile feeding mechanism for optimum fabric tension



Advanced Textile feeding mechanismStable feeding and transportation is crucial for high quality, accurate direct-to-textile printing. Advanced technology on the Tx300P-1800 achieves this while maintaining optimum tension as a result of Mimaki’s unique and reliable techniques, based on years of textile inkjet printer research and development.

  1. Feeding unit
  2. Rear tension bar
  3. Front tension bar: sensors monitor outer diameters of front and rear textile rollers and maintain the appropriate tension during printing
  4. Rear turn bars: bars equalize tension to prevent wrinkles on textile
  5. Drive roller: the shaft rotates forward to apply uniform tension
  6. Front turn bar: maintains the appropriate tension for stable textile take-up
  7. Take-up unit

A wide range of textile inks

Mimaki offers five ink types to meet various application needs.

Ink typeProduct nameColourFeaturesApplicationApplicable fabric
Sublimation dyeSb420Bl, M, Y, K, Lbl, LmSublimation ink for direct printing. No transfer paper is required.Soft signagePolyester
Disperse dyeDd400C, M, Y, K, R, Grey, Violet, PinkInks are fixed by heating and have high durability.Industrial textile, Luxury apparel, Home furnishingPolyester, nylon, acetate, and other fibres
Textile pigmentTP400C, M, Y, K, Bl, R, Lk, GreenSimple post-printing process. No steaming, washing and drying processes are required. Inks are fixed only by heating.Home furnishingCotton, hemp, and other fibres
Reactive dyeRc400C, M, Y, K, Bl, R, Or, LkInks produce a wide and vibrant gamut of colours, and have water resistance, light-fastness and rub-fastness, as dyestuff molecules bond with the fibres.Apparel, Home furnishing, Cotton, hemp, silk, rayon, and other fibres
Acid dyeAc400Acid dye C, M, Y, K, Bl, R, Or, LkInks produce vivid and brilliant colours on selected natural or synthetic fibres.Apparel, Home furnishingWool, leather, silk, nylon, and other fabrics




Our Sb420 ink is ECO PASSPORT by OEKO-TEX® certified.
